Dependency Inversion Principle in Unity (DIP)

The Code (Switch.cs)

First, let's look at the full Switch.cs script:

How It Works

1. The Problem: You want a Switch that can alter the state of an entity—be it a Door, a Trap, a Light, or another type of object. It is inefficient to write a separate Switch implementation for each distinct type.

2. The Solution (Interfaces):

   • We define an ISwitchable "contract" (an interface). Any component intended to be switchable (such as a Door or Trap script) must implement this interface, which mandates an IsActive property, an Activate() method, and a Deactivate() method.

   • Example:

   // In your Door.cs public class Door : MonoBehaviour, ISwitchable { private bool m_IsOpen = false; public bool IsActive => m_IsOpen; public void Activate() { m_IsOpen = true; Debug.Log("Door Opened!"); // Add door opening logic } public void Deactivate() { m_IsOpen = false; Debug.Log("Door Closed!"); // Add door closing logic } }

3. The Inspector Trick:

   • Unity's Inspector cannot directly display a field for an interface type like ISwitchable.

   • Therefore, in Switch.cs, we declare [SerializeField] private MonoBehaviour m_ClientBehavior;. This creates a slot in the Inspector where any component deriving from MonoBehaviour (i.e., any script) attached to a GameObject can be assigned.

   • When you assign your Door component (which is a MonoBehaviour and also implements ISwitchable) to this slot, m_ClientBehavior then references that Door component instance.

4. Making it Usable:

   • The line private ISwitchable m_Client => m_ClientBehavior as ISwitchable; is an effective mechanism. It attempts to cast the MonoBehaviour reference assigned in the Inspector (m_ClientBehavior) to the ISwitchable interface type.

   • If the assigned component (e.g., your Door script) correctly implements ISwitchable, the cast succeeds, and m_Client will hold a valid reference to it as an ISwitchable. Consequently, the Toggle() method can invoke m_Client.Activate() or m_Client.Deactivate() without needing to know the concrete type of the client, provided it adheres to the ISwitchable contract.

A Note for Server-Side C# Developers: Unity's Approach to Dependencies

If you're coming from a background in server-side .NET development, you might be used to injecting dependencies through constructors and validating them there. Here's how Unity's common practices differ for MonoBehaviour components like our Switch:

• No Constructor Injection for Inspector Fields: While MonoBehaviours can have constructors, Unity doesn't use them to inject dependencies that you assign in the Inspector (like m_ClientBehavior). Unity manages the creation and serialization of these objects.

• Awake() as the Initializer: The Awake() method is the first Unity-specific lifecycle method called after a MonoBehaviour is instantiated and its serialized fields (like those set in the Inspector) are populated. This makes Awake() the idiomatic place for runtime initialization and critical dependency validation, similar to how you might use a constructor for validation in other .NET contexts. If m_ClientBehavior isn't set up correctly, Awake() in our Switch logs an error and disables the component.

• OnValidate() for Editor-Time Checks: OnValidate() is a Unity editor-specific callback that runs when a script is loaded or a value is changed in the Inspector. It provides immediate feedback during design time, helping you catch configuration errors before even running the game. This is a proactive way to ensure dependencies are correctly assigned.

•

• DI Frameworks as an Alternative: For more complex projects or for those who prefer a more traditional DI approach, Unity does support dedicated Dependency Injection frameworks (e.g., VContainer, Zenject). These can provide features like constructor injection for MonoBehaviours, but they introduce their own setup and are typically adopted for larger-scale applications. The pattern shown in this Switch example is a fundamental and common way to handle dependencies directly within Unity.

Wiring It Up in the Unity Editor (TBD)

1. Create a C# script, say Door.cs, and make sure it inherits from MonoBehaviour and implements ISwitchable (like the example above).

2. Create another script, say Trap.cs, also implementing ISwitchable.

3. In your scene, create a GameObject (e.g., an empty GameObject or a 3D model for a switch). Attach the Switch.cs script to it.

4. Create a GameObject for your door. Attach the Door.cs script to it.

5. Create a GameObject for your trap. Attach the Trap.cs script to it.

6. Select the GameObject that has the Switch.cs script. In the Inspector, you'll see a field for the Switch component. It will be labeled "Client Behavior" (Unity automatically formats m_ClientBehavior for better readability).

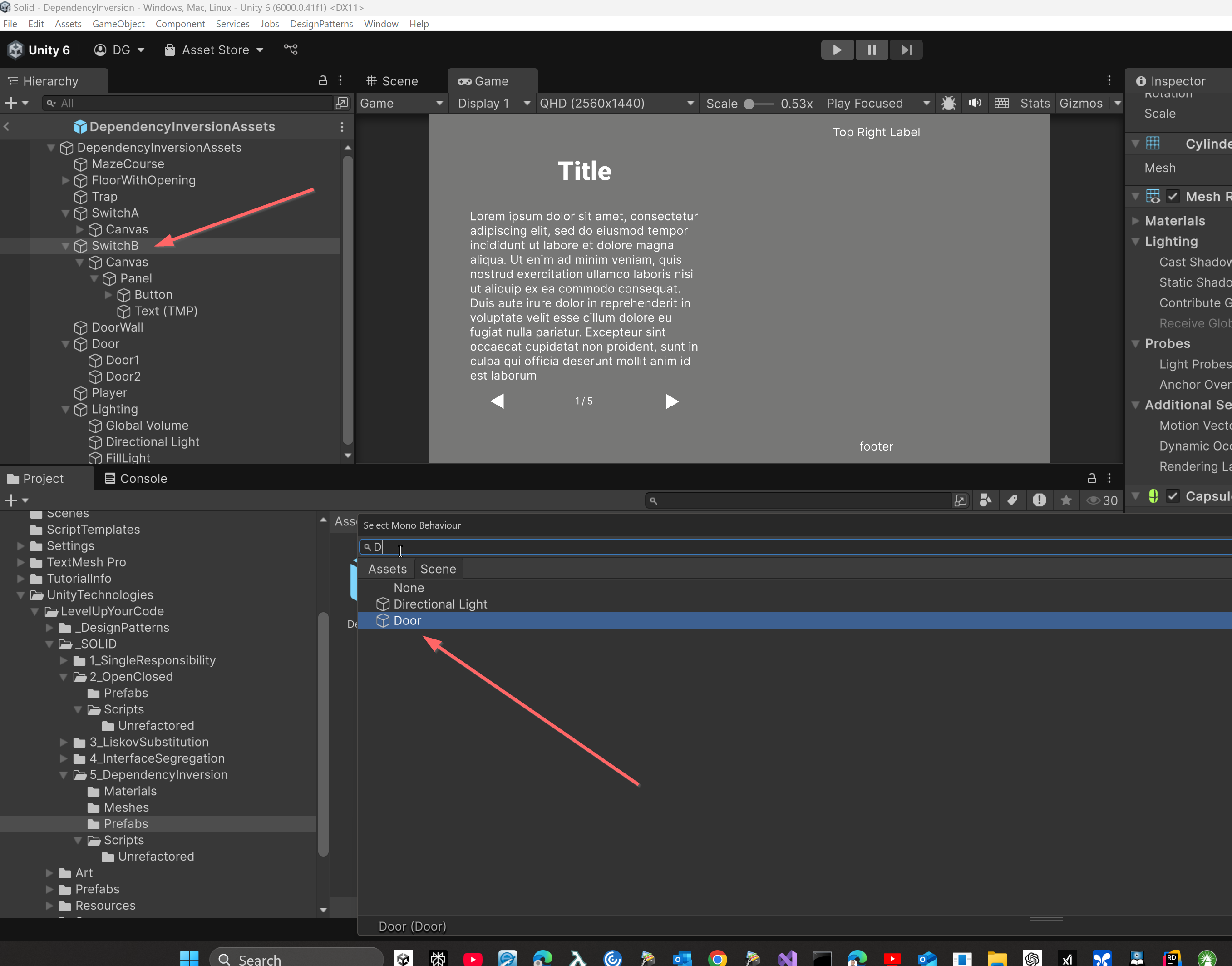

7. Drag the GameObject that has your Door.cs script from the Hierarchy into the "Client Behavior" slot on the Switch component.

   • Now, when Toggle() is called on this Switch instance, it will activate/deactivate that specific Door.

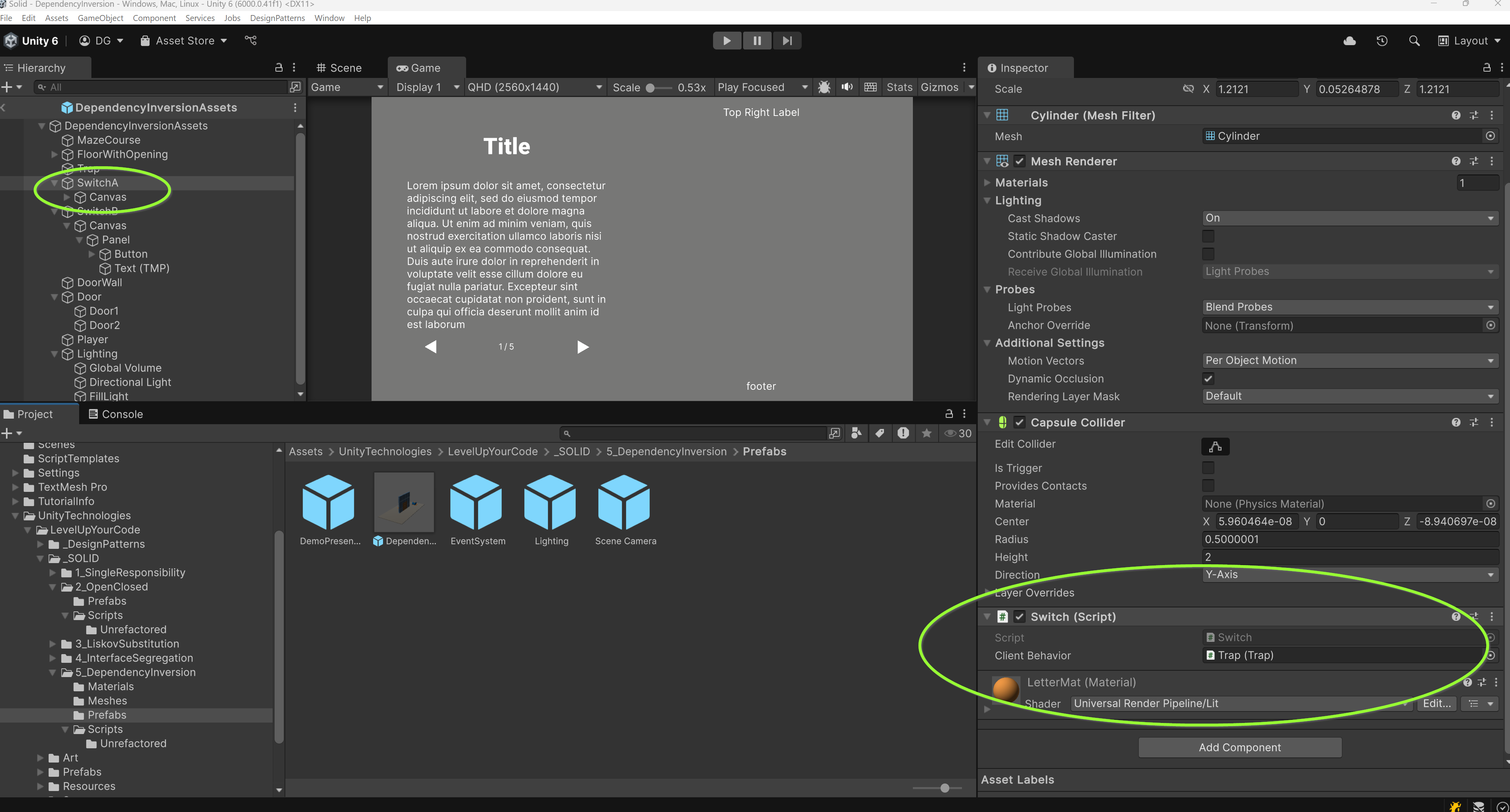

8. If you had another Switch instance and assigned your Trap GameObject to its "Client Behavior" slot, that switch would control the trap.

Why this is helpful (even if you don't prioritize SOLID principles):

This setup allows for the reuse of the Switch script for many different types of objects without modifying the Switch script itself. You merely specify which MonoBehaviour (that implements ISwitchable) it should interact with via the Inspector. If you later develop a new ISwitchable entity, such as a LaserBarrier, your existing Switch script is already equipped to work with it.

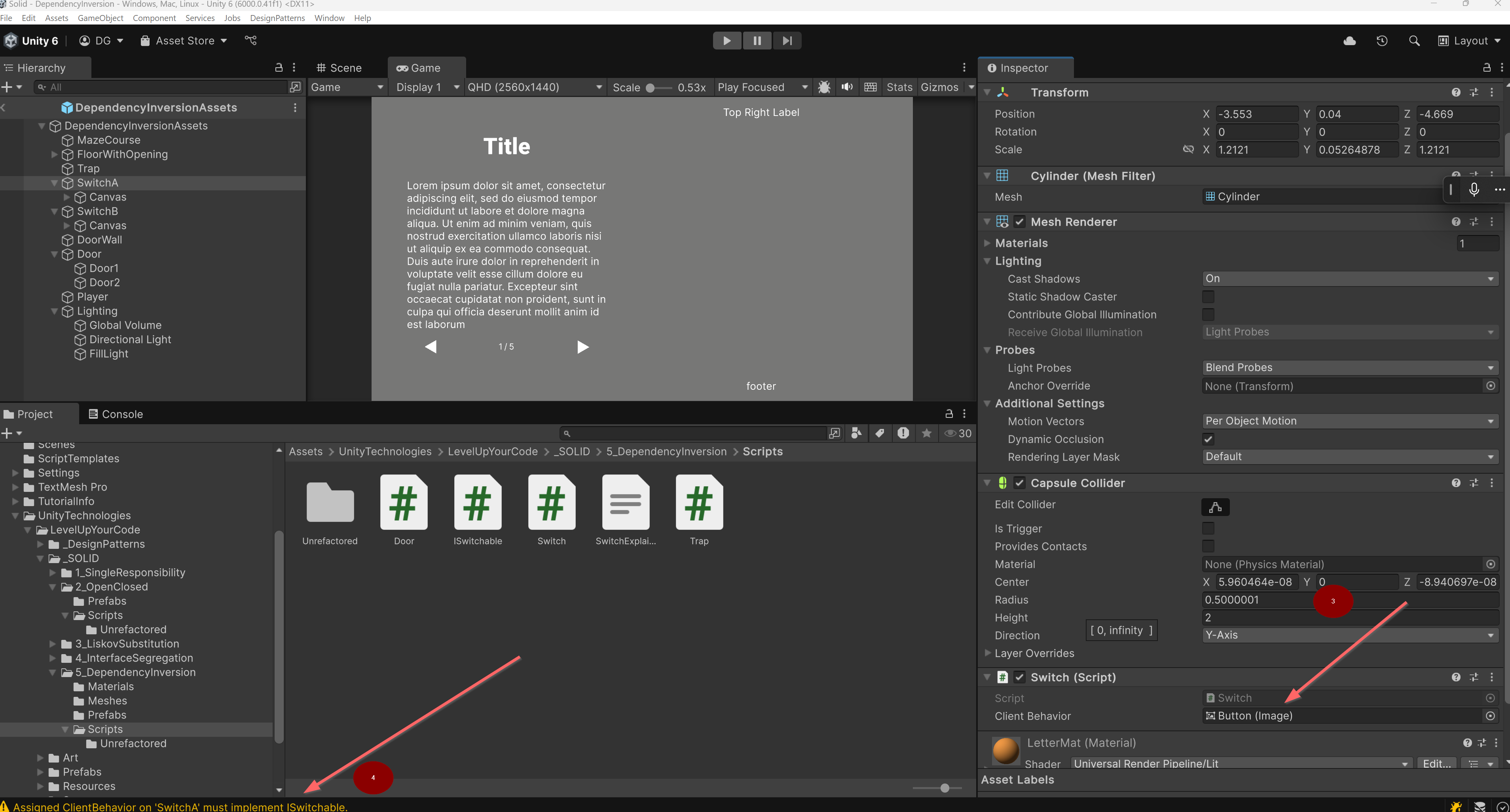

The OnValidate method in Switch.cs is a beneficial feature: it checks in the editor if the component assigned to the "Client Behavior" slot correctly implements ISwitchable. If not, it will display a warning in the console, assisting in the early detection of configuration errors.
