Memory Allocation and Management: Reference Types, Value Types, Arrays, and Linked Lists

Reference types vs. value types

void DemonstrateMemoryAllocation()
{
    int result = 5; // Value type (stored on the stack)
    var builder = new StringBuilder();
        // Reference type (reference stored on the stack,
        // object stored on the heap)
    var date = new DateTime(1984, 10, 9);
        // Struct (entire struct stored on the stack,
        // if inside the method)
    string formula = "2 + 2 = ";
        // Reference type (reference stored on the stack,
        // string data stored on the heap)

    builder.Append(formula);
        // `formula()` reference used to access
        // heap-stored string data
    builder.Append(result);
        // `result()` value directly appended,
        // since it's a value type
    builder.Append(date.ToString());
        // `date()` is a value type but converted to a string
        // (new string on the heap)

    Console.WriteLine(builder.ToString());
        // Outputs the final string
        // (builder and its contents in the heap)
}

Class vs. Struct: Memory Behavior

Class Example

public class Id
{
  public int Value { get; private set; }
  public Id (int value)
  {
    this.Value = value;
  }
}

public struct Id
{
  public int Value { get; private set; }
  public Id (int value)
  {
    this.Value = value;
  }
}

var a = new Id(123);

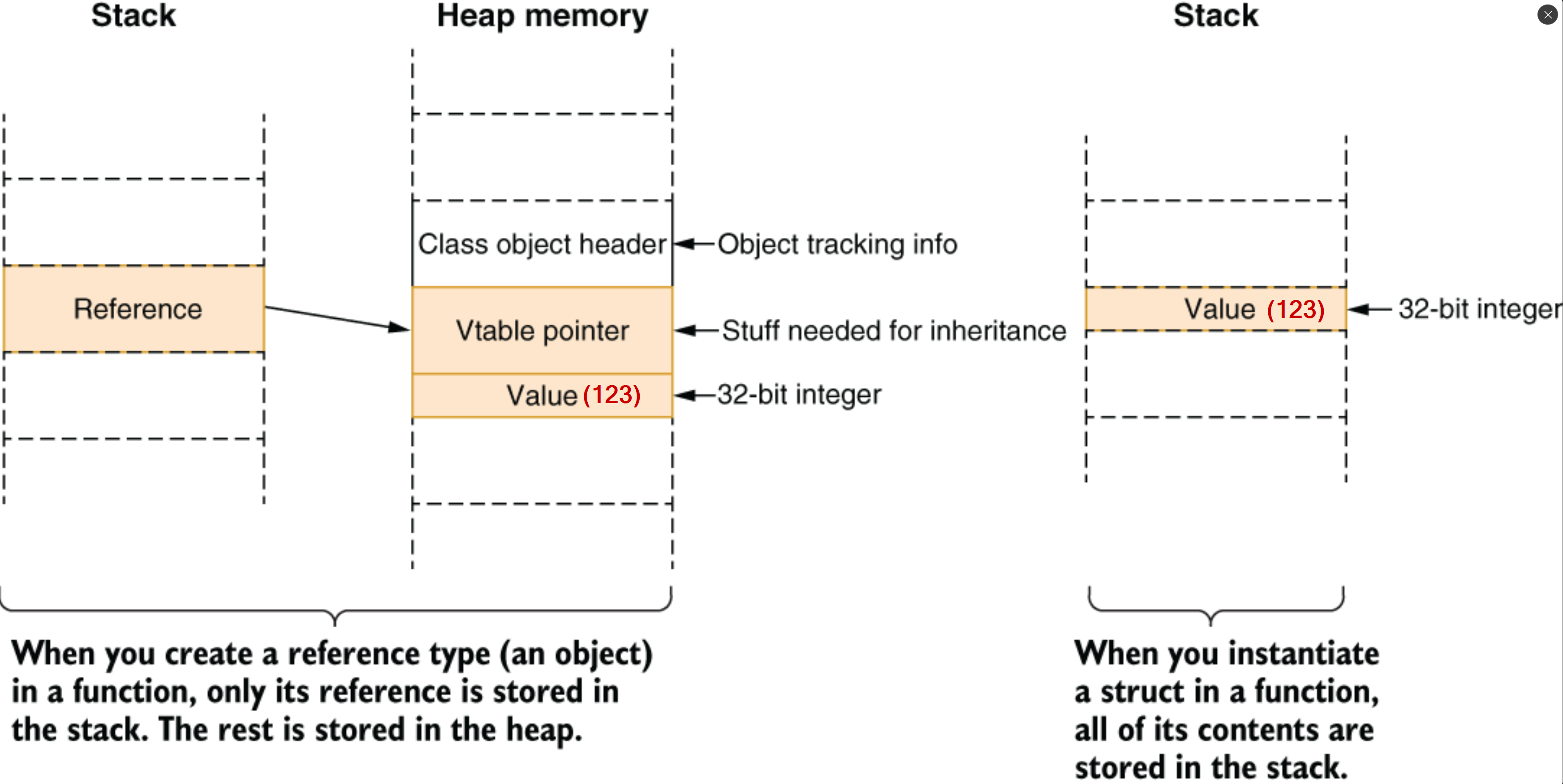

When using classes, a reference to the object is stored on the stack, but the actual object itself is stored in the heap. For structs, since they are value types, the entire object is stored on the stack if declared within a method.

var a = new Id(123);
var b = a;

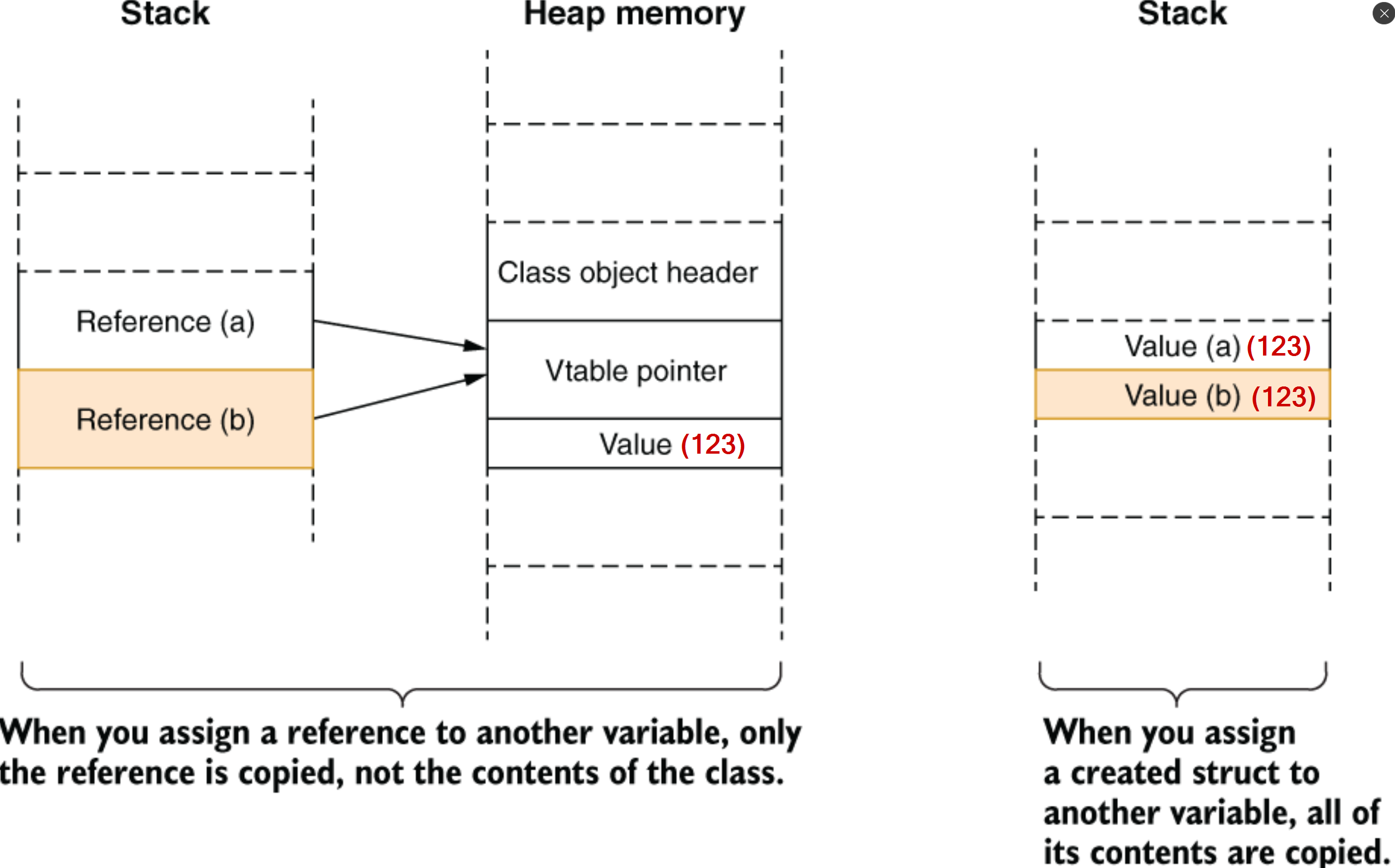

In the class example, only the reference is copied, so both a() and b() point to the same object in the heap. In the struct example, the entire object is copied, so a() and b() are independent.

Class and Struct Example with Person

Class

public class Person {                      ❶
  public int Id { get; private set; }
  public string FirstName { get; private set; }
  public string LastName { get; private set; }
  public string City { get; private set; }

  public Person(int id, string firstName, string lastName,
    string city)
  {
    Id = id;
    FirstName = firstName;
    LastName = lastName;
    City = city;
  }
}

Struct

public struct Person {                     ❶
  public int Id { get; private set; }
  public string FirstName { get; private set; }
  public string LastName { get; private set; }
  public string City { get; private set; }

  public Person(int id, string firstName, string lastName,
    string city)
  {
    Id = id;
    FirstName = firstName;
    LastName = lastName;
    City = city;
  }
}

var a = new Person(42, "Sedat", "Kapanoglu", "San Francisco");
var b = a;

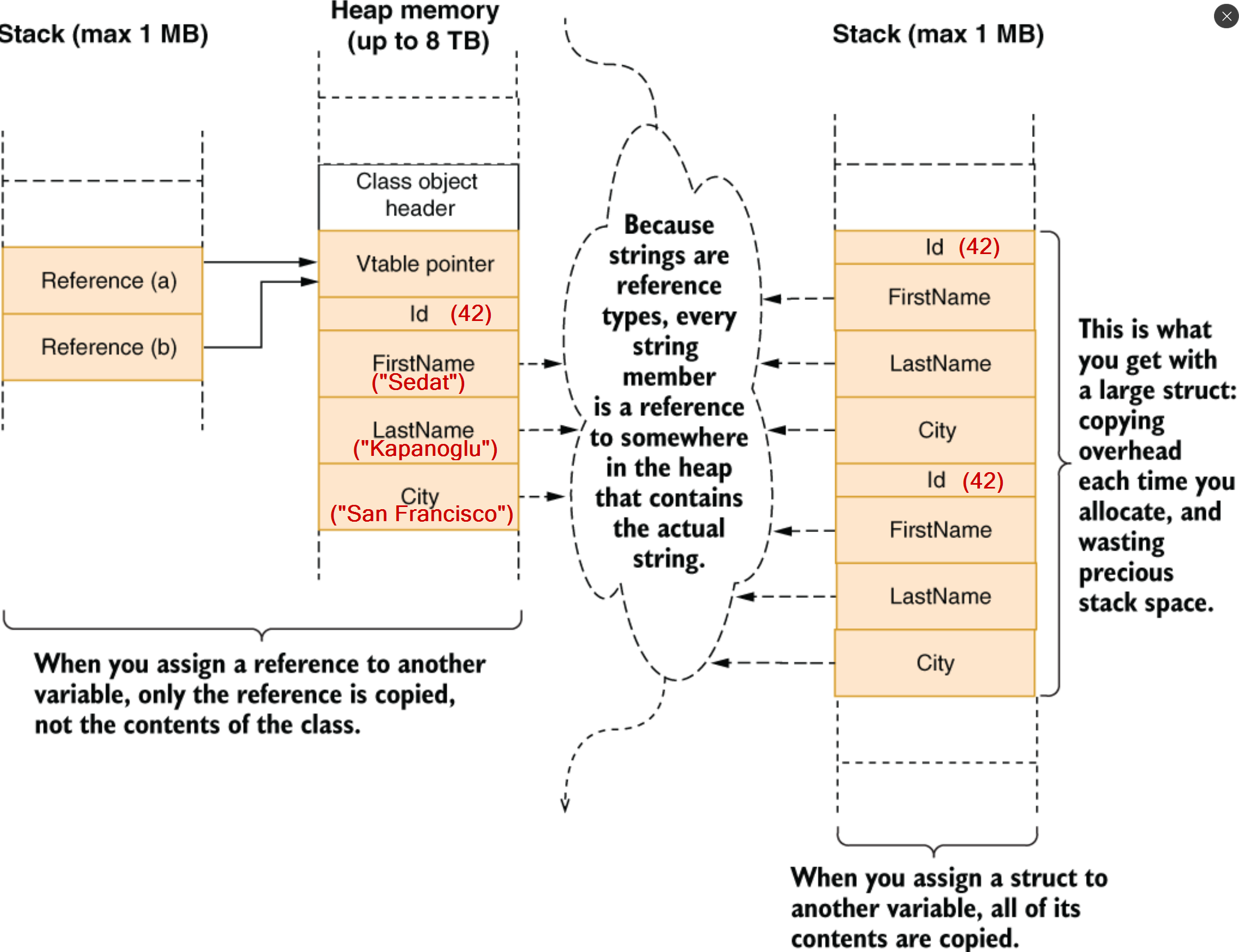

For classes, both a() and b() refer to the same object in the heap. For structs, a() and b() are independent objects, with the contents of a() copied into b().

Arrays

An array is a collection of elements, all of the same type, stored contiguously in memory. Contiguous means that the elements are placed next to each other in memory, with no gaps between them. Homogeneous means that every element in the array is of the same data type. Elements in an array can be accessed using an index.

void DemonstrateArrayMemoryAllocation()
{
    // Declare and initialize an array of integers
    var values = new int[] { 1, 2, 3, 4, 5, 6, 7, 8 };

    // Explanation:
    // 1. `values()` is a reference to an array, so the
    //    reference itself is stored on the stack.
    // 2. The actual array (int[] { 1, 2, 3, 4, 5, 6, 7, 8 })
    //    is allocated in the heap.
    // 3. The array consists of 8 integers, and each integer
    //    (since it's a value type) is directly stored in
    //    contiguous memory in the heap.
    // 4. The `values()` reference on the stack points to the
    //    memory location of the first element in the array
    //    in the heap.

    // Accessing the array elements:
    Console.WriteLine(values[0]);
        // Outputs 1, accessing the first element in the heap
        // via the reference.
    Console.WriteLine(values[7]);
        // Outputs 8, accessing the eighth element in the heap
        // via the reference.

    // Each access to an element uses the reference stored
    // on the stack to get the corresponding value from the heap.
}

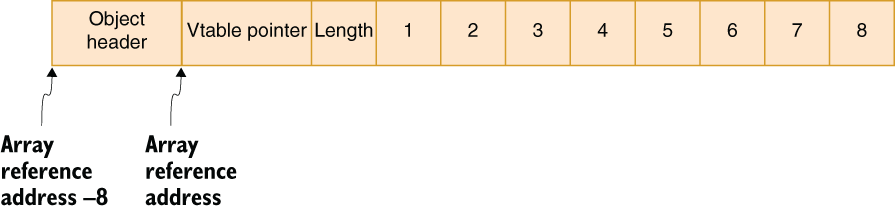

Actual layout of an array in memory

Linked List

A linked list is a collection of nodes, where each node stores a value (of a homogeneous data type) and a reference (or pointer) to the next node. Unlike arrays, nodes are stored non-contiguously in memory; their locations may be scattered, with the references connecting them.

void DemonstrateLinkedList()
{
    // Linked list declaration
    LinkedList<int> myList = new LinkedList<int>();

    // Adding some nodes
    myList.AddLast(10);
        // A node containing 10 is allocated in the heap
    myList.AddLast(20);
        // A node containing 20 is allocated in the heap
    myList.AddLast(30);
        // A node containing 30 is allocated in the heap

    // `myList()` reference is on the stack
    // But the actual linked list nodes are all stored in the heap
}

Exceptions: Misleading Simplifications

Note the following exceptions:

Value-type fields within reference-type objects are allocated on the heap.
Captured locals in closures might be moved to the heap.

Example of a closure capturing a local variable:

void DemonstrateClosure()
{
    int localValue = 42; // local created on the stack
    Func<int> getValue = () => localValue; // closure captures localValue, moving it to the heap
    Console.WriteLine(getValue());
}

Garbage Collection in .NET

In .NET, garbage collection (GC) is responsible for automatically managing memory. The GC monitors which objects in the heap are no longer being referenced and frees up that memory. In modern object-oriented environments, almost every aspect of execution has been optimized for speed. As a result, if your application experiences performance bottlenecks that aren't caused by your own code, they are most likely due to garbage collection. This is especially true when dealing with large numbers of objects or frequent memory allocations and deallocations.

In recent versions, Microsoft has been focusing on reducing the impact of garbage collection by introducing mechanisms like Span<T>() and Memory<T>(), which allow working with memory in a more efficient way, minimizing heap allocations. This helps improve performance by reducing the frequency and cost of garbage collection.

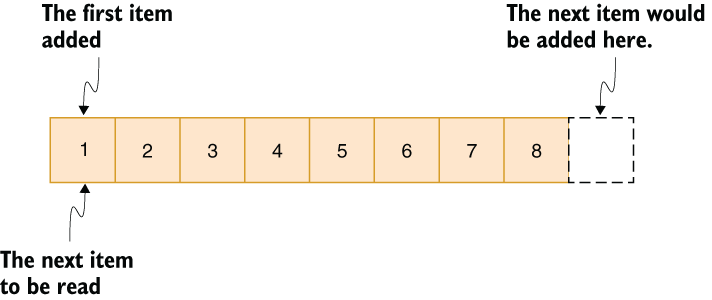

Queue: First In, First Out (FIFO)

When implementing a Queue using a linked list, adding elements to the back (enqueue) and removing from the front ( dequeue) are highly efficient O(1) operations. This is because the linked list maintains references to both the front and back nodes, allowing direct access for these operations.

While a Queue could be implemented using an array, this approach presents challenges:

The array requires pre-allocated size
Dequeuing elements from the front would require shifting all remaining elements forward
Array resizing becomes necessary when capacity is reached

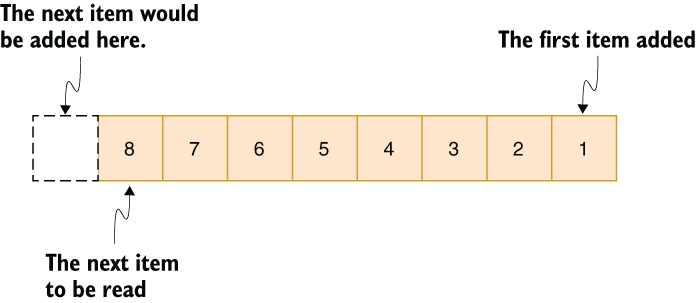

Stack: Last In, First Out (LIFO)

A linked list implementation of a Stack is particularly efficient for push and pop operations, both being O(1), as they only involve manipulating the head of the list. No element shifting is required, unlike with array-based implementations.

Similar to Queue, an array-based implementation of Stack would face the same challenges with pre-allocated size and array resizing.

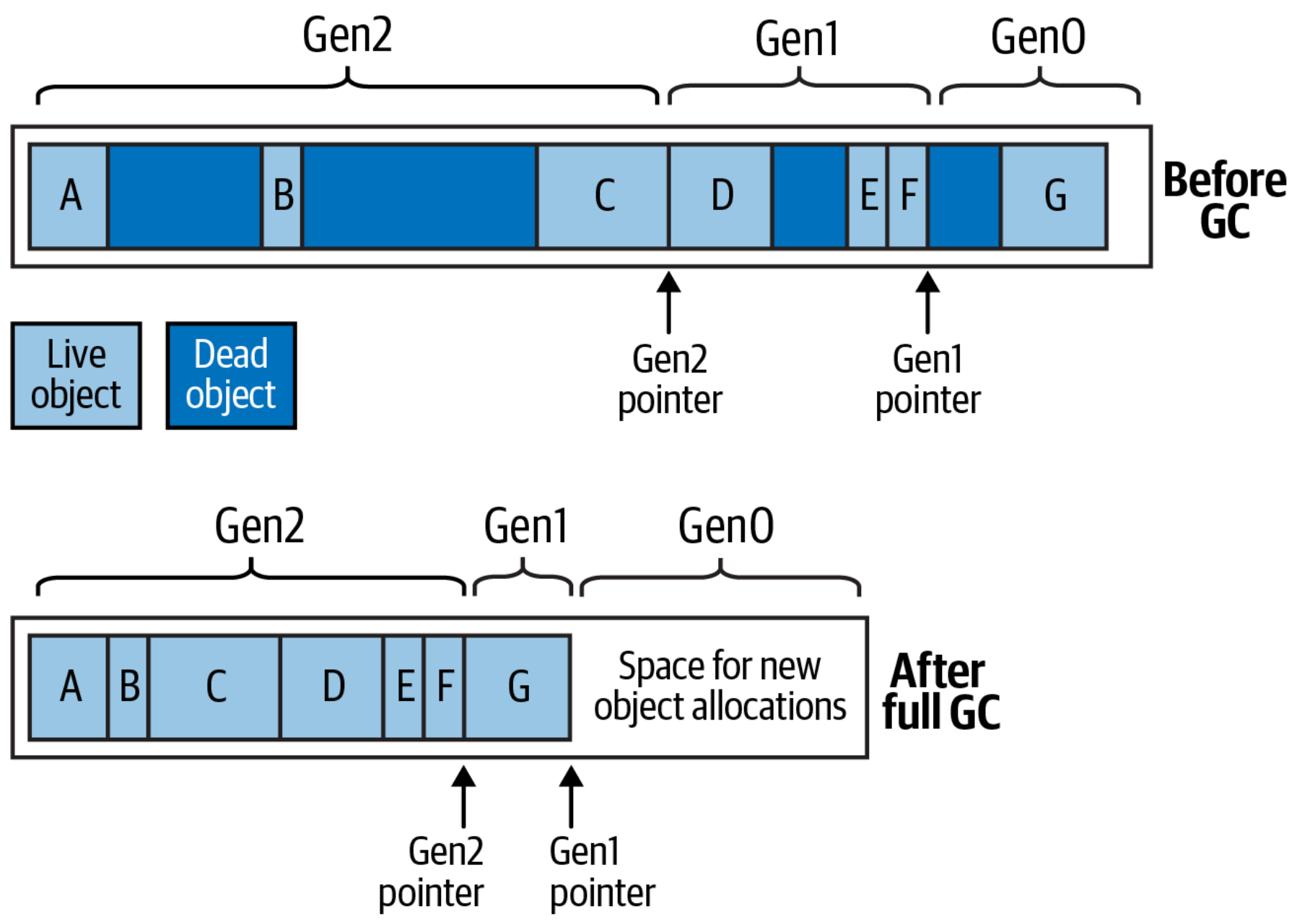

Garbage Collection Performance Summary (Optional)

From C# 12 in a Nutshell by Joseph Albahari (2024, pp. 593-597):

Generation	Object Size/Type	Collection Time	When It Occurs
Gen 0	Newest objects, typically small and short-lived	Less than 1 millisecond	Most frequent, typically unnoticeable
Gen 1	Objects that survived a Gen 0 collection	A few milliseconds	Intermediate frequency
Gen 2	Long-lived objects that survived Gen 1	Part of full collection	Least frequent
LOH (Large Object Heap)	Large objects ≥ 85,000 bytes	Part of full collection	Infrequent, special rules apply
Full collection	All generations (0, 1, 2, and LOH)	Up to 100 milliseconds	Least frequent, can cause noticeable pauses

The generational design significantly improves performance by focusing collection efforts on the newest objects, which are the most likely to become garbage. Each generation gets collected at different frequencies, creating an efficient balance between memory reclamation and application performance.
